This project, located at the Port Klang area in Malaysia, represents a landmark application of advanced pneumatic conveying technology for handling ultra-fine nano powders. The entire system is designed as a negative pressure dilute phase conveying solution, ensuring safe, dust-free, and high-efficiency material transfer over long distances. The client required a reliable system capable of transporting nano-scale powders without agglomeration or degradation, which is a common challenge in conventional conveying methods. By leveraging the expertise of Haide Powder, a leading pneumatic conveying system integrator based in Shandong, China, this project has successfully delivered a customized solution that meets both the operational and environmental standards of the port facility.
As a prominent pneumatic conveying case, this installation demonstrates the effectiveness of negative pressure dilute phase technology in the Malaysian industrial context. The system is specifically tailored for the Port Klang environment, where humidity, temperature variations, and the need for minimal maintenance are critical factors. Haide Powder's engineers conducted a thorough analysis of the nano powder's particle size, flowability, and hygroscopic properties before designing the conveying line. The result is a robust system that operates at low velocities to prevent particle breakage while maintaining high throughput. This Malaysia pneumatic conveying project has become a benchmark for similar applications in the region, showcasing how local conditions can be addressed through proper engineering.

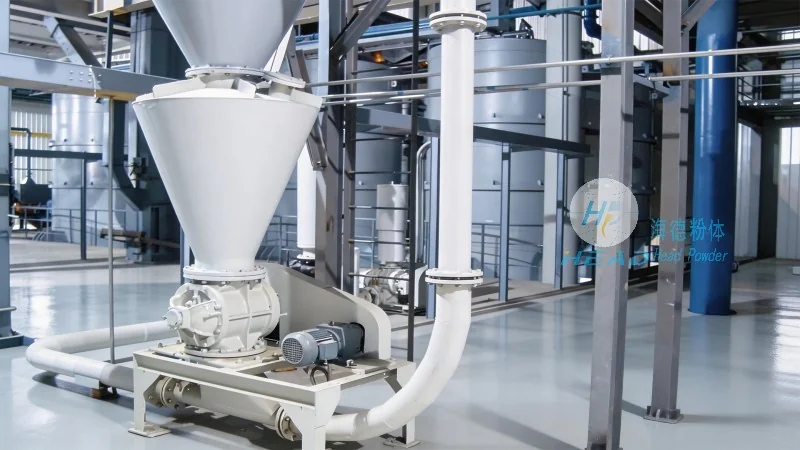

The Port Klang pneumatic conveying system integrates multiple components including a vacuum pump, receiving hopper, rotary valve, and pipeline network. One of the key innovations is the use of specialized surface-treated pipes that minimize friction and electrostatic buildup, which is crucial for nano powder handling. The negative pressure environment ensures that even the finest particles are captured and transported without leaking into the surrounding atmosphere. This is particularly important at a busy port where dust emissions could affect nearby operations. The system's control logic is fully automated, allowing operators to adjust conveying speed and pressure based on real-time material characteristics. This Port Klang pneumatic conveying project has significantly improved the client's logistics efficiency, reducing manual handling and product loss.
Nano powder pneumatic conveying presents unique difficulties due to the powders' tendency to adhere to surfaces, form agglomerates, and generate static electricity. In this project, Haide Powder employed a negative pressure dilute phase approach that keeps the powder suspended in a low-velocity air stream, preventing particle-to-particle collisions that could cause agglomeration. The system also features a specially designed feed mechanism that introduces the powder gently into the pipeline. Additionally, the receiving end includes a cyclone separator and a bag filter to ensure that the conveyed nano powder is collected with minimal loss. This nano powder pneumatic conveying solution has been proven to maintain the original particle size distribution and chemical purity of the material, a critical requirement for downstream processing.
The negative pressure dilute phase pneumatic conveying system operates by creating a vacuum at the material source, which draws the powder into the airstream and transports it to the destination. This method is particularly suitable for fragile or easily contaminated materials, as it avoids high-pressure compression that could damage the particles. In the Port Klang project, the system handles a throughput of several tons per hour while maintaining a consistent conveying ratio. The low air velocity reduces wear on the pipeline, extending the equipment's service life. Furthermore, the closed-loop design prevents any material from escaping into the environment, aligning with strict environmental regulations. This negative pressure dilute phase pneumatic conveying technology is widely recognized for its energy efficiency and reliability, making it the preferred choice for high-value nano powder applications.
Shandong Haide Powder Engineering Co., Ltd., known as Haide Powder, is a professional manufacturer and system integrator specializing in pneumatic conveying solutions. With its headquarters located in Shandong, China, the company has accumulated extensive experience in handling diverse materials including powders, granules, and nano-scale particles. The successful completion of the Malaysia Port Klang nano powder project is a testament to Haide Powder's technical capability and commitment to quality. The team, led by Manager Zhang, provides end-to-end services from design to installation and commissioning. For any inquiries related to pneumatic conveying systems, please contact Manager Zhang at 15662777102. Haide Powder continues to expand its global footprint, delivering customized solutions for clients in Malaysia, Southeast Asia, and beyond.
The system installed at Port Klang features a conveying distance of approximately 150 meters with a vertical lift of 20 meters. The negative pressure maintained at the source is around -0.05 MPa, while the conveying velocity ranges from 10 to 15 m/s. The material handled is a nano-scale alumina powder with an average particle size of 50 nanometers. The system's capacity is designed for 2.5 tons per hour, with a solids-to-air ratio of 0.8. All components are constructed from stainless steel to prevent contamination and corrosion. The control system includes pressure sensors, flow meters, and a PLC-based automation unit that records operational data for continuous optimization. These specifications ensure that the nano powder pneumatic conveying process meets the highest standards of precision and reliability.
Since its commissioning, the negative pressure dilute phase conveying system has operated without any major downtime, significantly reducing the client's material handling costs. The elimination of manual bag dumping and the reduction of dust emissions have improved workplace safety and hygiene. The client reported a 30% increase in overall efficiency compared to the previous mechanical conveying method. This Malaysia pneumatic conveying project has also attracted attention from other industrial zones in the region, leading to several follow-up inquiries. Haide Powder's ability to customize the system for nano powder applications has been a key differentiator. For more information or to discuss your specific conveying needs, you can reach out to Manager Zhang directly at 15662777102. The company is dedicated to providing innovative and cost-effective solutions for the pneumatic conveying industry.
