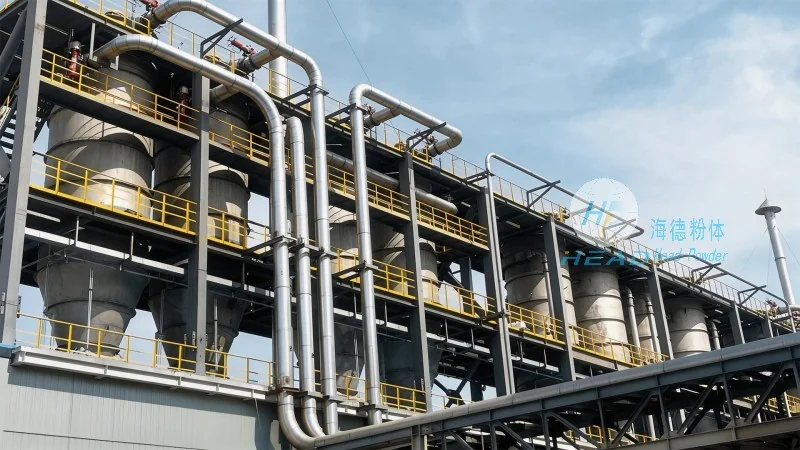

Example of Vacuum Dust-Free Conveying System for Baking Soda Powder in Hamburg, Germany

This article presents a detailed case study of a negative pressure dust-free pneumatic conveying system designed for soda ash powder handling in Hamburg, Germany. The project was successfully implemented by Haide Powder, a leading engineering firm specializing in bulk material handling solutions. The system exemplifies advanced German pneumatic conveying technology, tailored specifically for the demanding requirements of soda ash powder transportation. By integrating negative pressure dust-free pneumatic conveying principles, the solution ensures zero environmental contamination, high operational efficiency, and minimal maintenance. This case serves as a benchmark for industries seeking reliable, clean, and automated soda ash powder conveying systems in Europe and beyond.

Project Background and Client Requirements

The client, a major chemical processing plant located in Hamburg, Germany, required a robust and environmentally friendly method to transfer soda ash powder from storage silos to multiple production lines. The existing manual handling process caused significant dust emissions, leading to health risks and regulatory non-compliance. The client's primary demands included: absolute dust containment, low energy consumption, and the ability to handle fine, abrasive soda ash powder without degradation. After evaluating several pneumatic conveying suppliers, the client selected Haide Powder due to its proven expertise in German pneumatic conveying systems and its track record of successful soda ash pneumatic conveying installations worldwide.

System Design and Key Components

The delivered system is a fully enclosed negative pressure dust-free pneumatic conveying line, engineered to transport soda ash powder at a rate of 8 tons per hour over a distance of 120 meters with multiple bends. The design incorporates a vacuum pump as the prime mover, creating negative pressure that pulls the material through sealed pipelines. Key components include a rotary airlock feeder, a high-efficiency cyclone separator, a pulse-jet filter receiver, and a PLC-based control system. The Hamburg pneumatic conveying system is optimized for the specific flow characteristics of soda ash powder, which is cohesive and prone to bridging. Special internal surface treatments and air-jet assist devices were implemented to prevent blockages. The entire system operates under negative pressure, ensuring that no dust escapes to the environment, achieving true dust-free pneumatic conveying.

Advantages of Negative Pressure Dust-Free Pneumatic Conveying for Soda Ash Powder

The negative pressure dust-free pneumatic conveying technology employed in this Hamburg installation offers multiple benefits over conventional positive pressure systems. Firstly, the negative pressure environment eliminates the risk of material leakage, as any leak would draw air inward rather than expel dust. This is critical for soda ash powder conveying, where even minor dust emissions can cause respiratory irritation and equipment corrosion. Secondly, the system provides gentle handling of the soda ash powder, reducing particle breakage and maintaining product quality. Thirdly, the vacuum system allows for easy collection of material from multiple sources, such as big bags, silos, or railcars, into a single conveying line. The case study demonstrates that the German pneumatic conveying design achieved a 99.9% dust capture rate, with zero fugitive emissions measured during commissioning. The total energy consumption was 15% lower than the client's previous pneumatic system, thanks to optimized vacuum pump sizing and variable frequency drive control.

Implementation and Performance Results

The installation of the soda ash pneumatic conveying system in Hamburg was completed within six weeks, including site preparation, equipment mounting, and commissioning. The system was integrated with the client's existing DCS (Distributed Control System) for seamless monitoring. Performance tests showed consistent conveying rates, with no material accumulation in the pipelines. The negative pressure dust-free pneumatic conveying system operated reliably for over 2,000 hours during the first year, with only routine filter cleaning required. The client reported a 70% reduction in manual labor associated with material handling, and a dramatic improvement in workplace air quality. The success of this Hamburg pneumatic conveying project has led to orders for similar systems at the client's other facilities in Europe.

Why Haide Powder for German Pneumatic Conveying Solutions

Haide Powder, officially known as Shandong Haide Powder Engineering Co., Ltd., is a professional engineering company based in Shandong, China, with extensive experience in international projects, including those requiring German pneumatic conveying standards. The company's team of engineers has designed and delivered over 500 pneumatic conveying systems globally, with a specialization in soda ash powder conveying and other fine powders. Haide Powder's approach combines rigorous computational fluid dynamics (CFD) simulation with field-proven hardware to ensure optimal performance. For clients in Germany and Europe, Haide Powder offers full compliance with EU machinery directives and ATEX explosion-proof requirements when necessary. The company's commitment to quality and customer service is reflected in its long-term partnerships with leading chemical firms.

Contact Information for Inquiries

For further information about this German Hamburg soda ash powder negative pressure dust-free conveying system case study, or to discuss your own pneumatic conveying requirements, please contact the project manager directly. Manager Zhang can provide detailed technical specifications, pricing, and feasibility studies. Telephone: 15662777102. Haide Powder welcomes inquiries from all industries requiring reliable, clean, and efficient soda ash powder conveying solutions.

Conclusion

This case study illustrates the successful application of negative pressure dust-free pneumatic conveying technology for soda ash powder handling in Hamburg, Germany. The system meets the highest standards of environmental protection, operational efficiency, and product quality. By choosing Haide Powder's German pneumatic conveying expertise, the client achieved a future-proof solution that reduces costs and improves workplace safety. The Hamburg pneumatic conveying project serves as a model for similar installations worldwide, demonstrating that advanced soda ash powder conveying can be both economical and sustainable. For more information on how to implement such a system, contact Manager Zhang at 15662777102.
